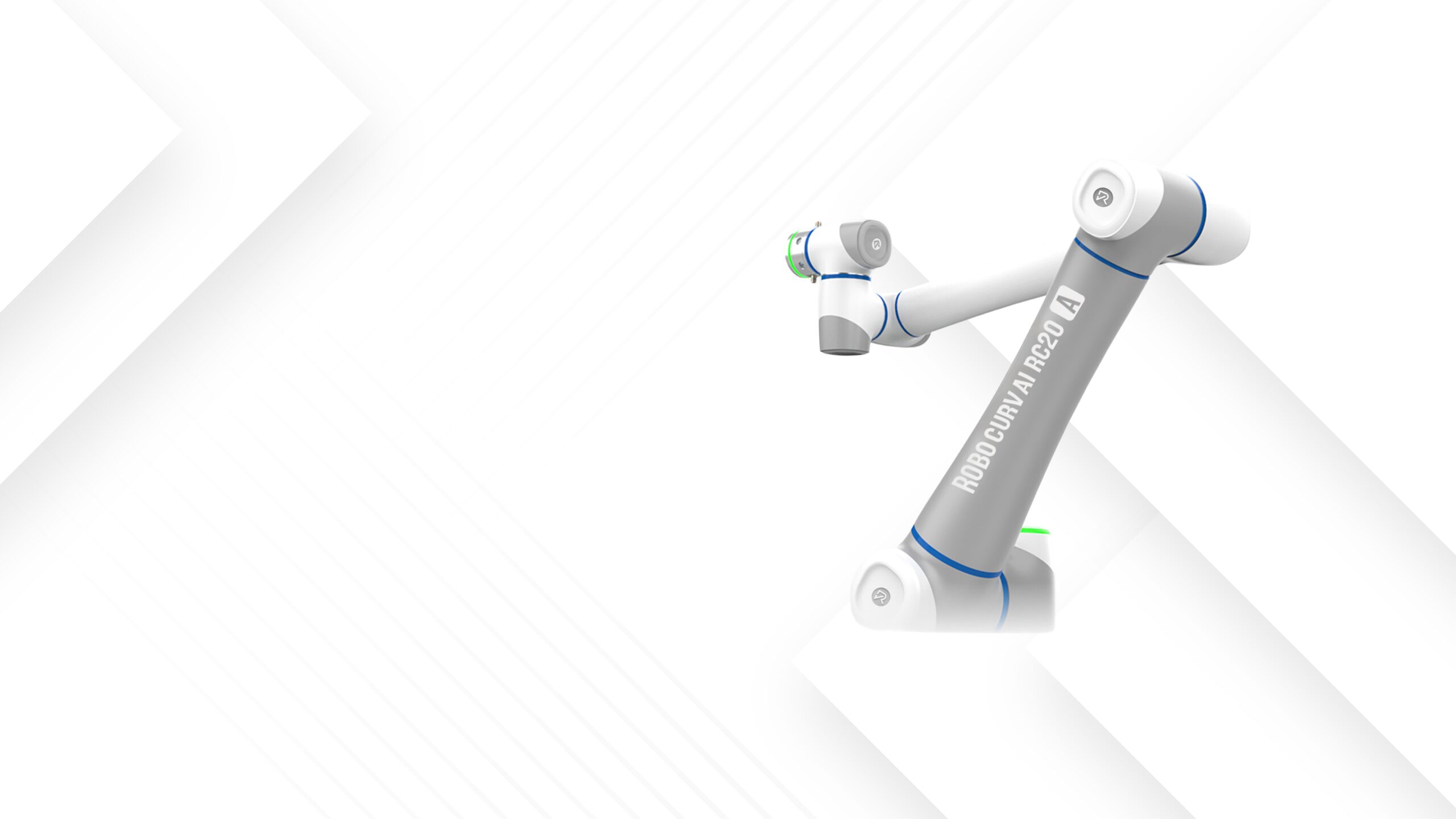

RC20A Collaborative Robot
Empowering Heavy-Duty Automation for Smart Industries
Key Features at a Glance
- Max Payload: 20 kg
- Working Radius: 1,700 mm
- Repeatability: ±0.05 mm
- Max TCP Speed: 2,000 mm/s
- Noise Level: ≤ 70 dB
- Visual Status Indicator & Electromagnetic Brake Protection
Please fill in the information below for further product information.
RC20A |
 |
|
| Weight | 73 kg | |
| Maximum Payload | 20 kg | |
| Working Radius | 1,700 mm | |
| Maximum Speed of TCP | 2,000 mm/s | |
| Maximum Joint Speed | J1/J2: 120°/s · J3: 150°/s · J4–J6: 180°/s | |
| Range of Motion | ±360° (J1/J2/J4/J5/J6) · ±165° (J3) | |
| Repeatability | ±0.05 mm | |
| Power | 24V DC, Rated 2A, Max 3A | |
| I/O Ports | 2 x RS485/AI, 2 x DI, 2 x DO | |
| Digital IO | 24 ports with PNP & NPN switching | |
| Connectivity | Profinet, Ethernet/IP, TCP/IP, Modbus, Wi-Fi | |
| Cable Length to Controller | 6 m | |
| IP Rating | IP54 (Robot & Control Box) | |
| Noise Level | ≤ 70 dB | |
| Installation | Upright | |
| Materials | Carbon Steel, Aluminum Alloy, ABS Plastic | |
| Operating Temp. | 0° to 50°C | |
Working Range
Faster Deployment with User-Friendly Design
- Dual-channel end effector interface allows plug-and-play connection to multiple tools.
- Visual LED status indicator on the base enables intuitive operational monitoring.
Unmatched Strength & Reach
- 1,700 mm working radius and 20 kg payload open new possibilities in palletizing, heavy-duty welding, logistics, and automotive assembly.
- Vibration suppression algorithm improves stability—50% less residual vibration during high-speed stops.
Superior I/O & System Integration
- 24 configurable digital IO ports
- Seamless integration with industrial systems (PLC) via ProfNet and Ethernet/IP
Advanced Safety System
- IP54-rated body and control box
- Automatic alarm upon overload
- Electromagnetic brake protection reduces tool drop distance during power loss
