RC10A

Reliable Cobot with Extended Reach and High-Speed Precision

RC10A

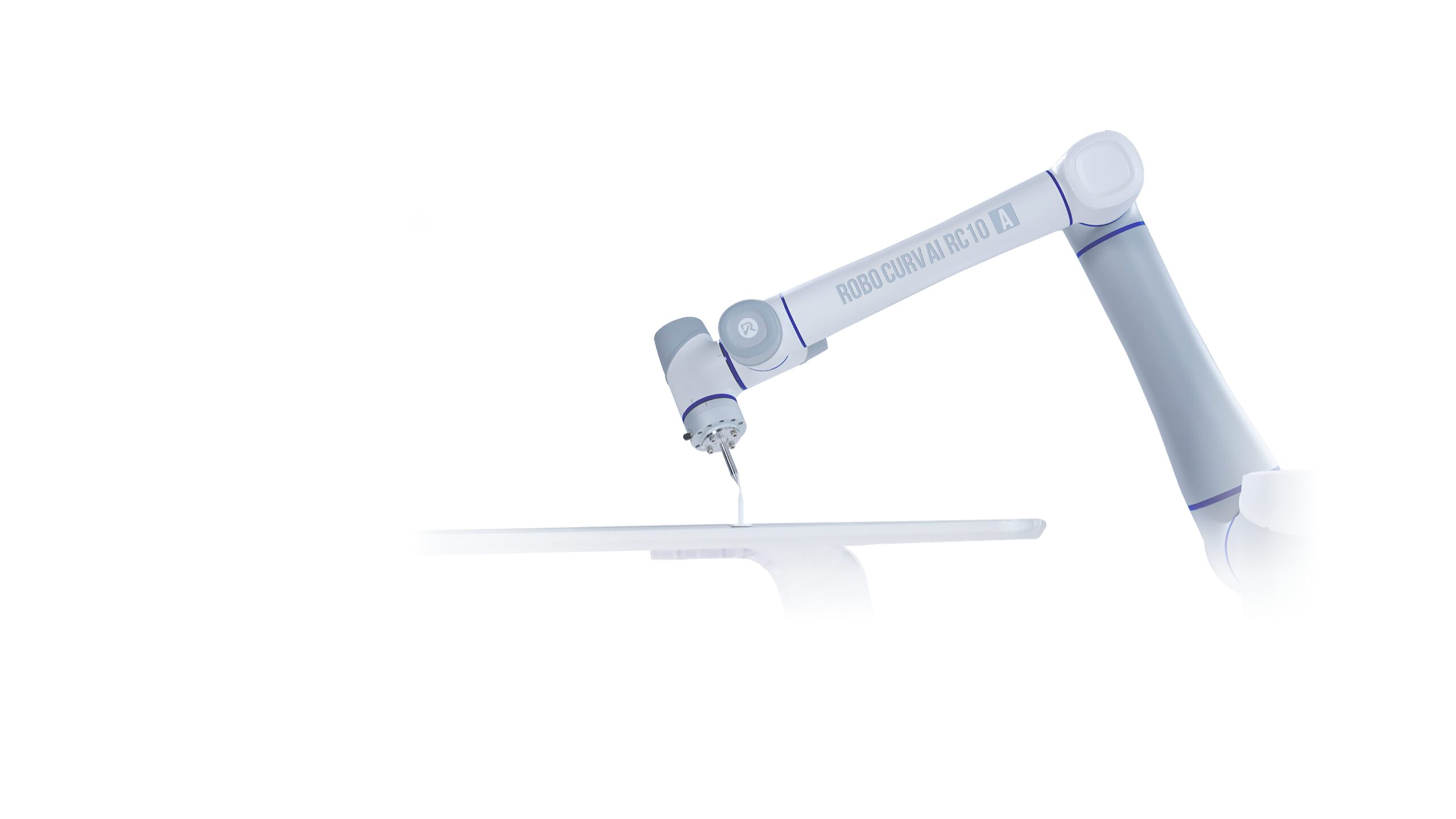

RC10A Collaborative Robot

The Robo Curv AI RC10A delivers high-performance automation with an extra-wide working radius and maximum speed of 4 m/s, making it the ideal solution for palletizing, transportation, unpacking, and high-volume material handling. Designed for reliability at speed, the RC10A features DH parameter compensation and advanced vibration suppression, ensuring accuracy and safety in demanding environments.

Key Features at a Glance

Max Reach: 1525 mm
Max Payload: 10 kg
Repeatability: ±0.03 mm
Speed: Up to 4 m/s
Lightweight Body: Only 40 kg
SafeSkin-Compatible (Optional IP66)
Ideal for Fast-Paced Warehousing and Logistics

Please fill in the information below for further product information.

First Name

Last Email

Phone Number

Comapny

Country

Industry

*I have read and agree to the User Registration Agreement and Privacy Statement of RoboCurv

RC10A
Weight		40 kg
Maximum Payload		10 kg
Working Radius		1300 mm
Maximum Reach		1525 mm
Repeatability		±0.03 mm
Maximum Speed of TCP		4 m/s
Power Consumption		350W
Rated Voltage		DC48V
Temperature Range		0°C – 45°C
IP Rating		IP54 (Control Box IP20, optional IP66)
Materials		Aluminum Alloy, ABS Plastic
