Robo Curv AI – Technical Specifications
Product specifications
| Product Name | Model | Weight | Rated Power | Power Supply | Input Air Pressure |
|---|---|---|---|---|---|
| Robo Curv AI – Spraying Robot System | RC10A Series | 1510 kg | 5.5 kW | 220V / 50Hz (Single Phase) | 7–8 Bar |
Mechanical & Structural Design
| Degrees of Freedom (DOF) | Payload Capacity | Material | IP Protection Level | Dimensions (Standard Model) | Operating Temp. Range |
|---|---|---|---|---|---|
| 9-axis linkage | 8 kg | High-strength Aluminium Alloy | IP54 | 6880 × 3774 × 2331 mm | 10°C – 70°C |
Performance & Accuracy
| Repeatable Accuracy | Joint Speed (J1–J2) | Joint Speed (J3–J4) | Max. Rotation Speed | Linear Speed | Safety Feature |
|---|---|---|---|---|---|
| ±1 mm | 100°/s (Rated) | 150°/s (Rated) | 180°/s (Rated) | 780 mm/s (Rated) | AI-driven torque monitoring for collision prevention |
Product Features
High Adaptability

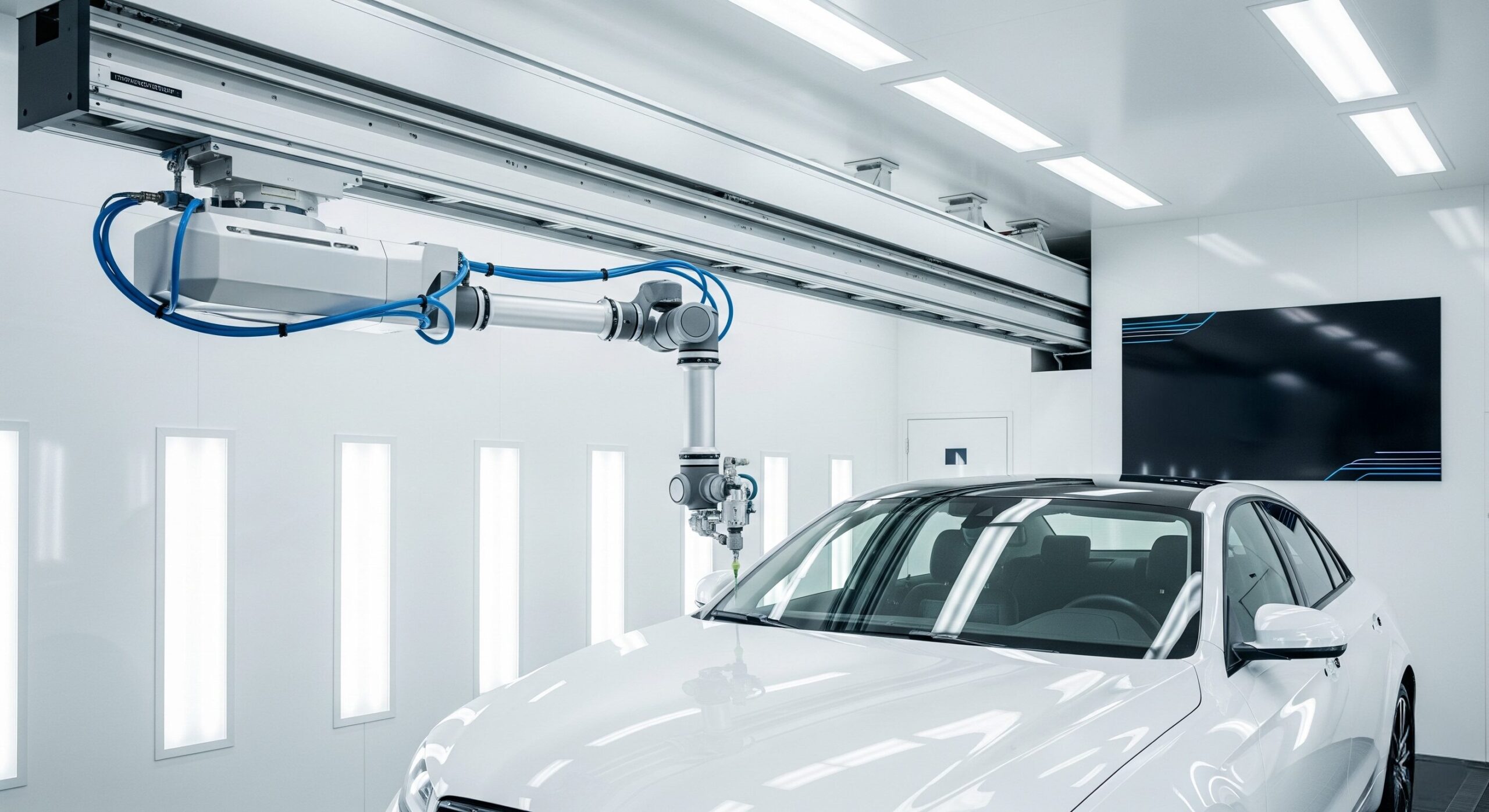

Robo Curv AI can be seamlessly installed in existing standard spray booths without modification, ensuring compatibility with current infrastructure.
Easy to Set Up
With a lightweight and modular design, Robo Curv AI is easy to assemble and disassemble. The system can be fully set up within just 5 days, minimizing downtime and accelerating deployment.
AI-Powered Auto Gun Docking and Replacing
During the spraying process, Robo Curv AI’s intelligent robotic system autonomously travels to the gun rack area to dock the paint gun, varnish gun, and dryer according to the spraying program. This AI-driven automation enables a fully unmanned spraying process with maximum precision.
AI-Enhanced Auto Refilling and Washing
Based on preset programs, up to 8 base coat cups and clear coat cups can be preloaded. Robo Curv AI automatically manages refilling and gun washing, eliminating manual intervention and ensuring uninterrupted spraying operations.
Low Maintenance Cost
Engineered for long service life, minimal maintenance, and low energy consumption, Robo Curv AI reduces operating costs while delivering consistent performance.
Self-Developed AI Technology
Robo Curv AI integrates advanced, self-developed AI algorithms for intelligent batch generation, spray path verification, and real-time spray effect simulation—guaranteeing accuracy, efficiency, and superior finish quality.
Simple and Efficient Operation
Robo Curv AI completes the full spraying process in just over 40 seconds. With one-click start and one-click completion, a single operator can oversee multiple devices simultaneously without manual input.
Flexible and Customizable Processes
Product Specifications
AI Empowered Spraying Industry
Robo Curv AI revolutionizes automotive coating with intelligent automation.
Compatibility

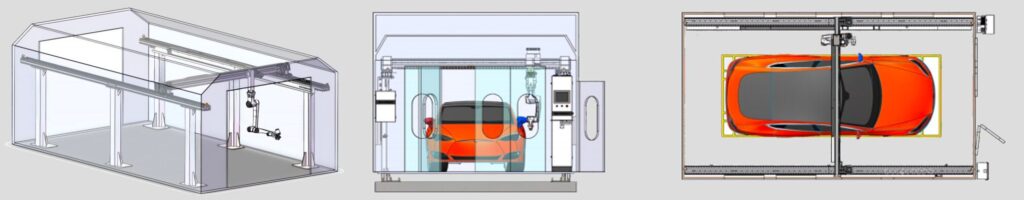

Fits general spray booths (4m × 7m), suitable for full vehicle and parts spraying.
Paint & Car Database
Compatible with most mainstream paint brands and common car models. The database is continuously expanding with AI-driven updates.
Deployment Timeline
3 weeks total — 1st week setup, 2nd week debugging, 3rd week training.
User-Friendly Training
Painters of all levels can begin operating within 1–2 weeks of training.
High Efficiency
Delivers 6–8 complete sprays per shift.
